CBR SR-30T Phase Sequence Relay Three Phase Power Converter 3A Electromagnetic Brake
| Place of Origin | NINGBO, CHINA |
|---|---|
| Brand Name | CBR |
| Certification | CE |
| Model Number | SR-30 |
| Minimum Order Quantity | MOQ:500pcs |
| Price | USD3-5/PC |
| Packaging Details | Box+carton, 500pcs/carton, 15kg/carton, carton size: 38x21.5x32cm |
| Delivery Time | 3-20 working days depending on the quantity |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | AC220V | Coil Voltage Range | DC93-118V |
|---|---|---|---|
| Output Capacity | 3A | Brake Rated Voltage | 99VDC |
| Material | ABS | Produc Name | Brake Recetifier |
| High Light | CBR SR-30T Phase Sequence Relay,Phase Sequence Relay Electromagnetic Brake,Three Phase Power Converter 3A |
||
Product Description
CBR SR-30T three-phase power converter AC to DC output 3A capacity bridge Half wave high power electromagnetic brake &clutch rectififer
Application:
Protect motors and other equipment from unstable voltages in the power supply system. Protect motors and other equipment by detecting
overvoltages, undervoltages, phase sequence, and phase loss for three-phase power supplies.
Description:
The type SR series brake rectifier is used to supply DC operated disc brakes on small motors where standard release reaction times of the brake are required.
The DC motor brake rectifier is used to stop electrical machines quickly to avoid dangerous conditions for people and machines,and it is widely used for Cranes Lifts Elevating machines and Machine tools and so on.
Features:
- Half-wave rectifier from AC to DC
- Cost-effective
- Fast reaction
- DC switching connector.
- Protection for the reverse peak voltage
- Compact housing for mounting at the motor terminal block

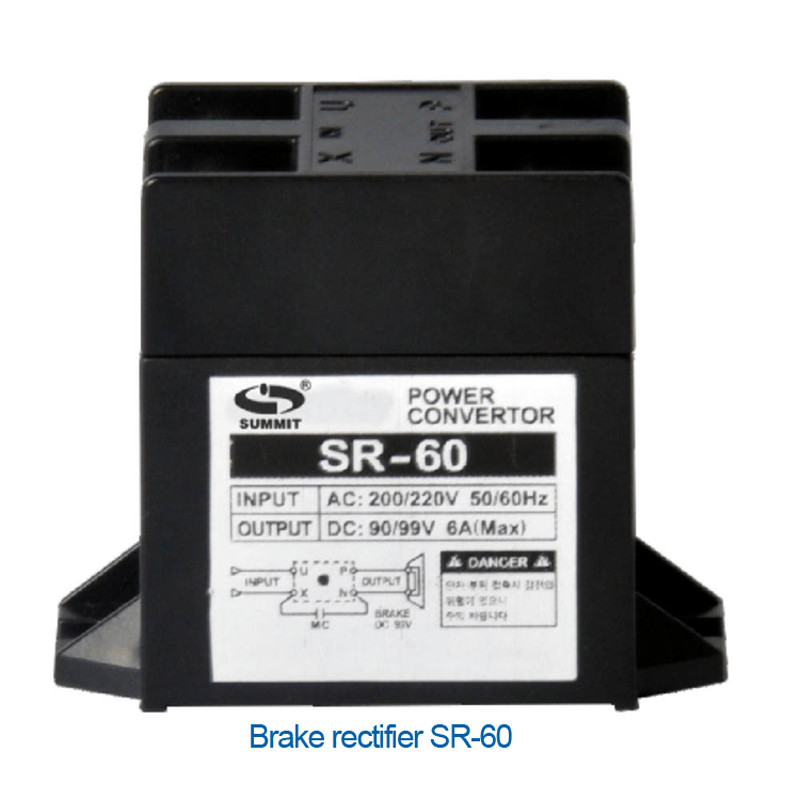

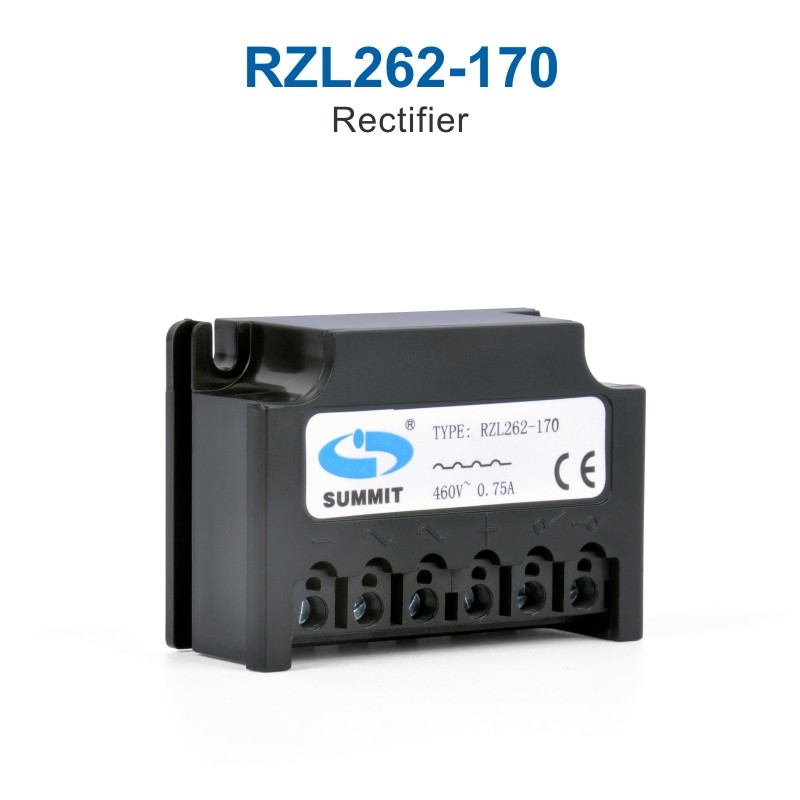

| Mode: | RZL262-170 | SR-30T | SR-60T |
| Input Voltage | 220V | 220V(200V) | 220V(200V) |
| Coil voltage Range | 93~118V | 93~118V | 93~118V |
| Input/output relation | Vdc=Vac/2.2 | Vdc=Vac/2.2 | Vdc=Vac/2.2 |
| Output Capacity | 3A | 3A | 6A |
| Suitable Frequency | 40~60Hz | 40~60Hz | 40~60Hz |
| Brake rated voltage | 99VDC | 99V(90V)DC | 99V(90V)DC |
| Protection Class | IP45 | IP45 | IP45 |
| Working Temperature | -25~80℃ | -25~80℃ | -25~80℃ |
| Enclosure Material | ABS plastic/polycarbonate | ABS plastic/polycarbonate | ABS plastic/polycarbonate |

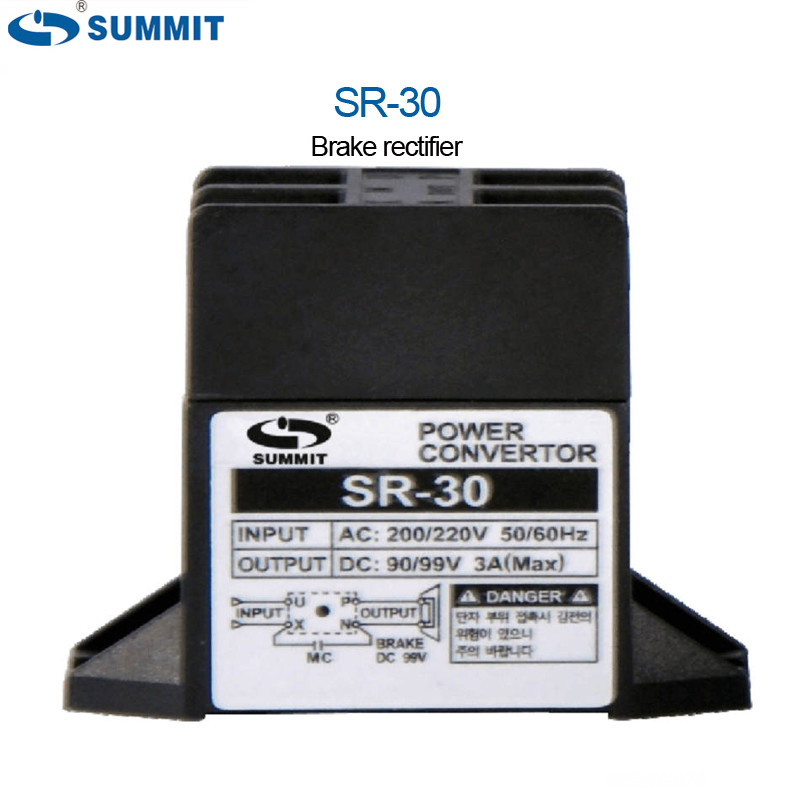

Brake rectifier SR-30 rectifier size:
Motor brake rectifier wiring diagram:
Instruction:
