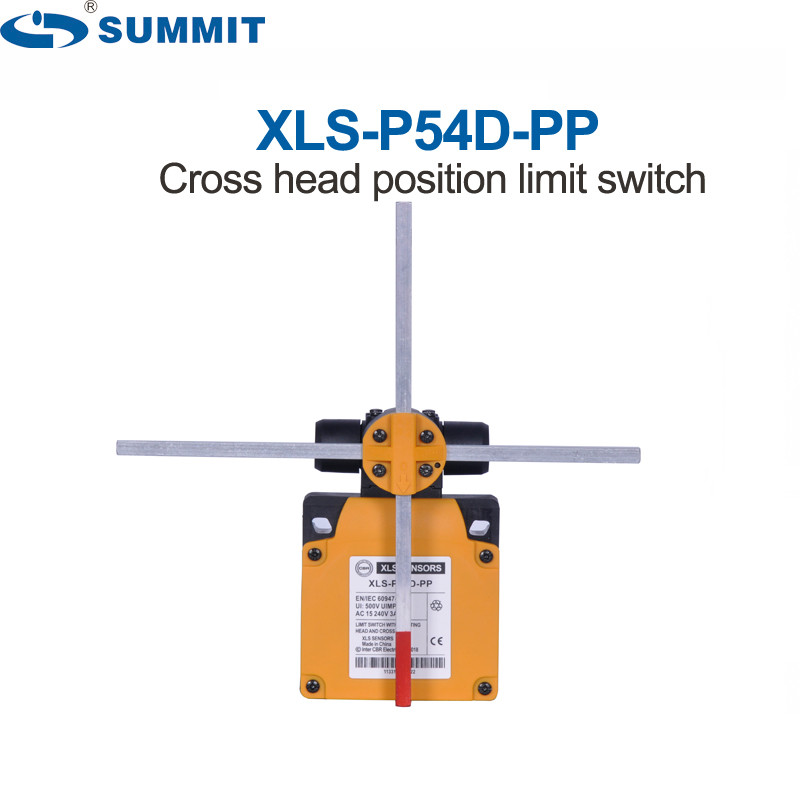

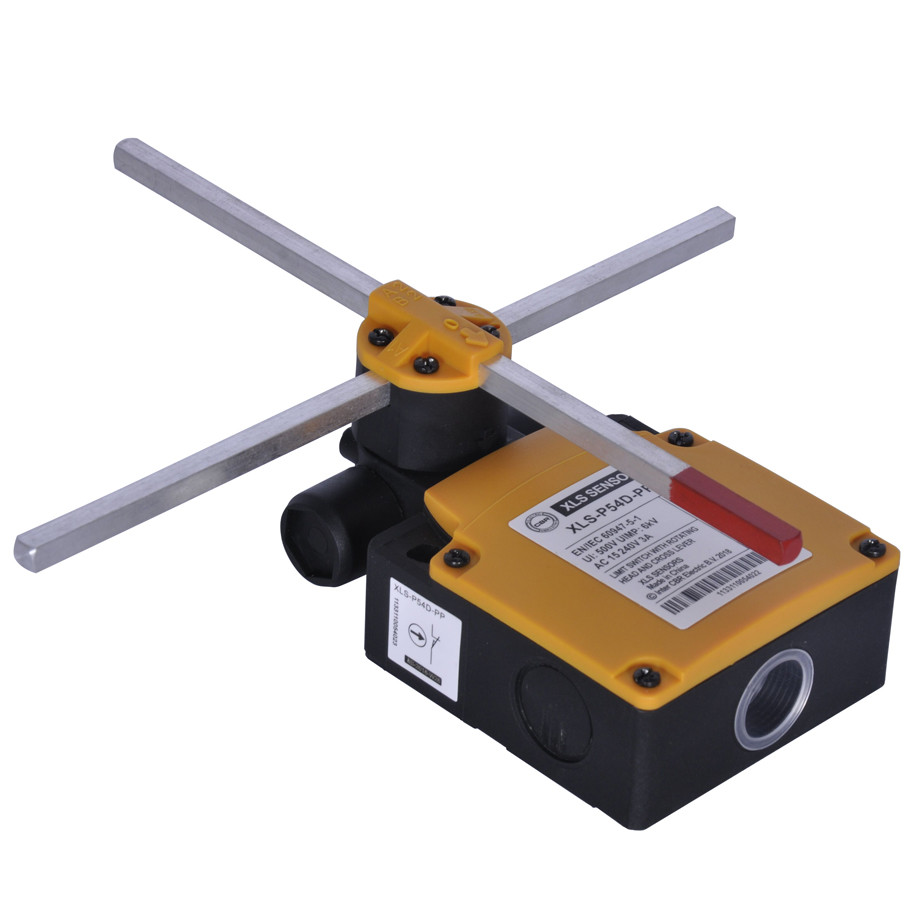

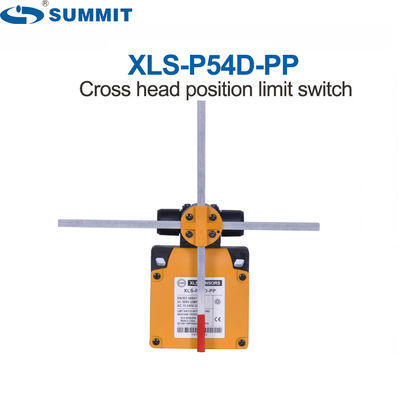

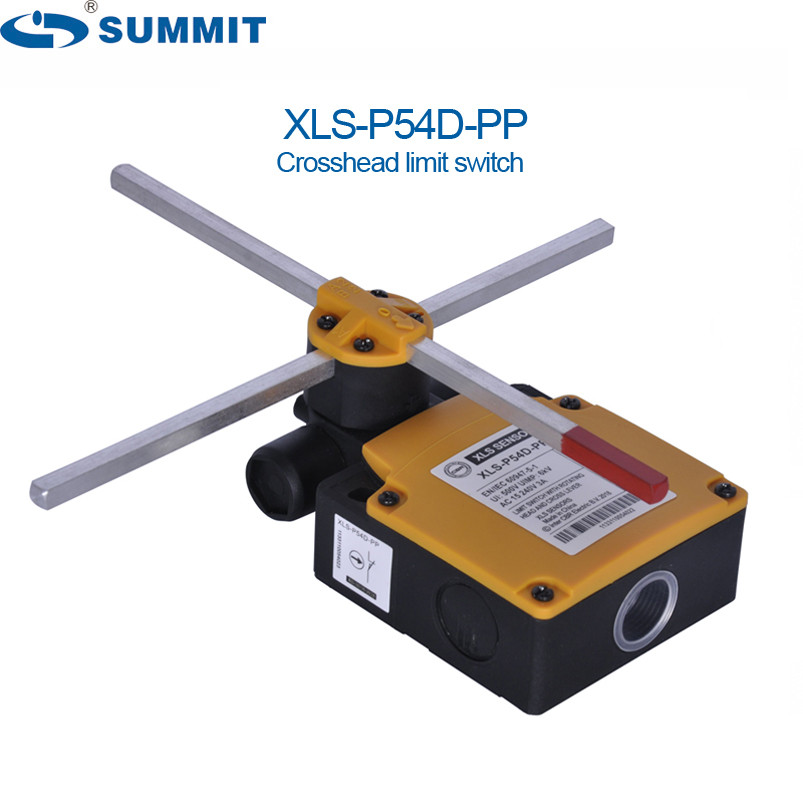

CBR Cross Rods Head Position Limit Switch Rotating Head Crane Position Switch
| Place of Origin | NINGBO CITY, CHINA |
|---|---|
| Brand Name | SUMT, CBR |
| Certification | CE |
| Model Number | XLS-P54D-PP |
| Minimum Order Quantity | MOQ:12pcs |
| Price | USD45-65/PC |
| Packaging Details | Box+carton, 35X23X24cm/carton, G.W.:5kg/carton, 12pcs/carton |
| Delivery Time | 3-20 working days( depending on the quantity) |
| Payment Terms | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000-1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nylon Plastic | Application | Chain Hoist, Wire Rope Hoist |
|---|---|---|---|
| Cable Entry | M20 | Head Type | Rotary Head |
| Contacts Type And Composition | 2X2NO. | Rated Operational Current | 3A |
| Highlight | Head Position Limit Switch M20,CBR Cross Rods Crane Position Switch,Rotating Head Crane Position Switch M20 |
||
Product Description
CBR cross rods head position limit swith with rotating head and cross lever for dual speed moters electric hoist handing
Description:
The XLS-P54D-PP Position limit switches are designed to control the movement of overhead travelling cranes, hoists and machine tools. They operate as auxiliary controllers of electrical motors through power interfaces, such as contactors or PLCs.
Both the enclosure and the head of the limit switches are made of thermoplastic material (nylon reinforced with fibre glass). Materials and components ensure high resistance and endurance and protect the equipment against water and dust.
Features:
- 2 fixing holes.
- Positive opening NC contacts for safety functions.
- Mechanical life of switches: 1 million operations.
- Operation frequency: 3600 operations/hour max.
- Extreme temperature resistance: -25°C to +70°C.
- Enclosure and head in thermoplastic material.
- All materials and components used are wear resistant and
- guarantee protection of the unit against water and dust.
| Model | XLS-P54D-PP/NP |
| Case | glass fiber reinforced,thermoplastic |
| Actuator Type | Crossed Rods Lever |
| movement of operating head | Rotary |
| type of operator | Stainless steel |
| Fixing type | Stay put crossed rods lever metal (square rod 6 mm, L = 200 mm) |
| type of approach | Lateral approach 2 directions |
| number of poles | 4 |
| contact operation | Slow-break, staggered |
| Contact Type & Operation: | 2 x (2 NC) |
| Product Range: | Limit Switches |
| Cable entry: | cable clamp M20 |
| Markings and homologations: | CE |
| Conformity to Standards: | EN 60947-5-1 |
| Rated insulation voltage: | 500 Vac |
| Utilisation category: | AC 15 |
| Rated operational voltage: | 250 Vac |
| rated impulse withstand voltage | 6 kV |
We SUMMIT has been providing versatile load-limitation systems for all types of cranes and especially overhead cranes. In particular, we have supplied them to the very important players in the lifting and material handling industry as well as in steel industry. That is why we can claim that we have a solid experience and are highly dependable as regards load-limiting devices for cranes which enables us to equip the most complex of systems.
We offers a very wide range of overload limiter and applicable to versatile industry application:
- Load cells and load pins (from 1000 kg up to 10T, higher capacity on request) such as Split type overload limit switch: OMS-370C+CRN-GX, OMS-350+CRN+GX and so on.
- clamp on wire rope load limiter:SUMT-QZX(A), OMS-370C+RH-EC, OMS-370C+RH-BC and so on
- Current detection overload limiter (CWL-010)
- Cross head limit switch
- Geared limit switch(worm rod lift switch)
- tension link load limiter (RHP-X)
- Load limiters with analogue or digital outputs(OMS-820)
Module design and easy and free combination to suit different installation demand.
Solutions to meet your integrated needs
Application:
Overload limiter prevent accidents occurring due to the raised load dangerously exceeding the normal value as established by the manufacturer or by the user of the lifting device. It makes a vital contribution to the safety of operatives.
A comprehensive kit for crane/hoist overload protection that includes everything needed to install or retrofit on bridge cranes is now available from SUMMIT load weighing Systems
